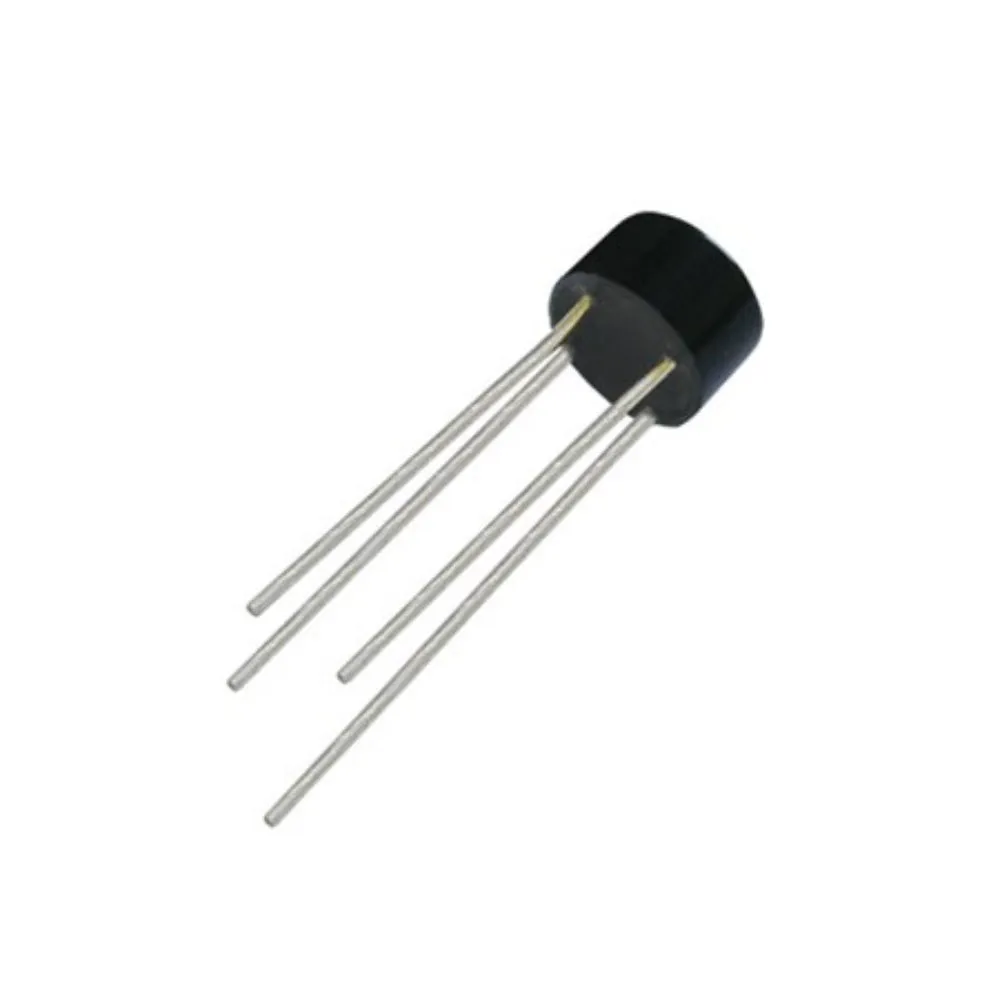

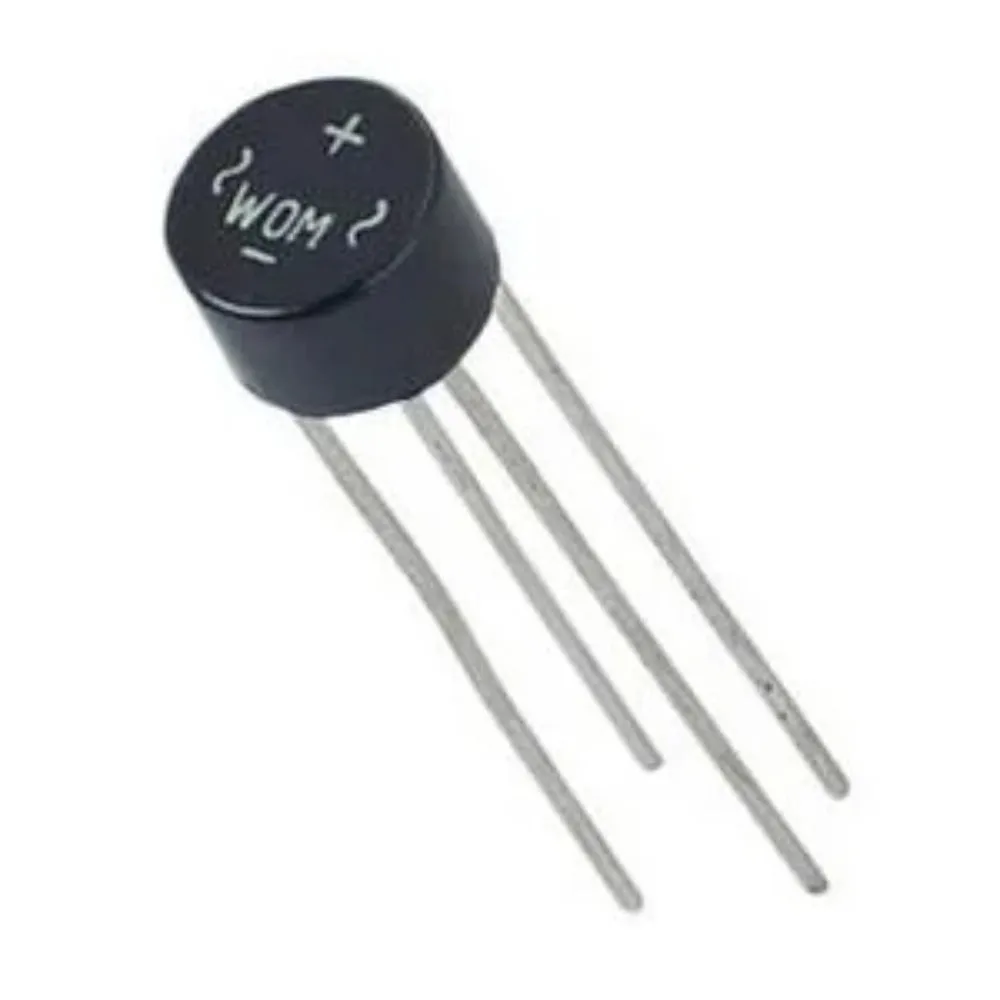

The W08 Bridge Rectifier IC is a fundamental component used in electronic circuits to convert alternating current (AC) to direct current (DC). This set includes 10 pieces of the W08 Bridge Rectifier IC.
Key Features:
W08 IC Bridge Rectifier: The W08 is a four-pin bridge rectifier IC.1.5A Current Rating: Capable of handling a maximum current of 1.5 Amperes.
Standard Voltage Rating: Suitable for applications with standard voltage requirements.
Easy Installation: The IC is designed with four pins, facilitating straightforward installation on the circuit board.
AC to DC Conversion: Performs the essential task of converting AC input to DC output through the rectification process.
Versatile Applications:
Power Supplies: Commonly used in power supply circuits.Electronics Projects: Suitable for various electronic projects requiring AC to DC conversion.
Bridge Configuration:
Full-Wave Rectification: Forms a bridge configuration for efficient full-wave rectification.
Compact Design:
Space-Efficient: Compact size allows for easy integration into circuits with limited space.
Pack of 10:

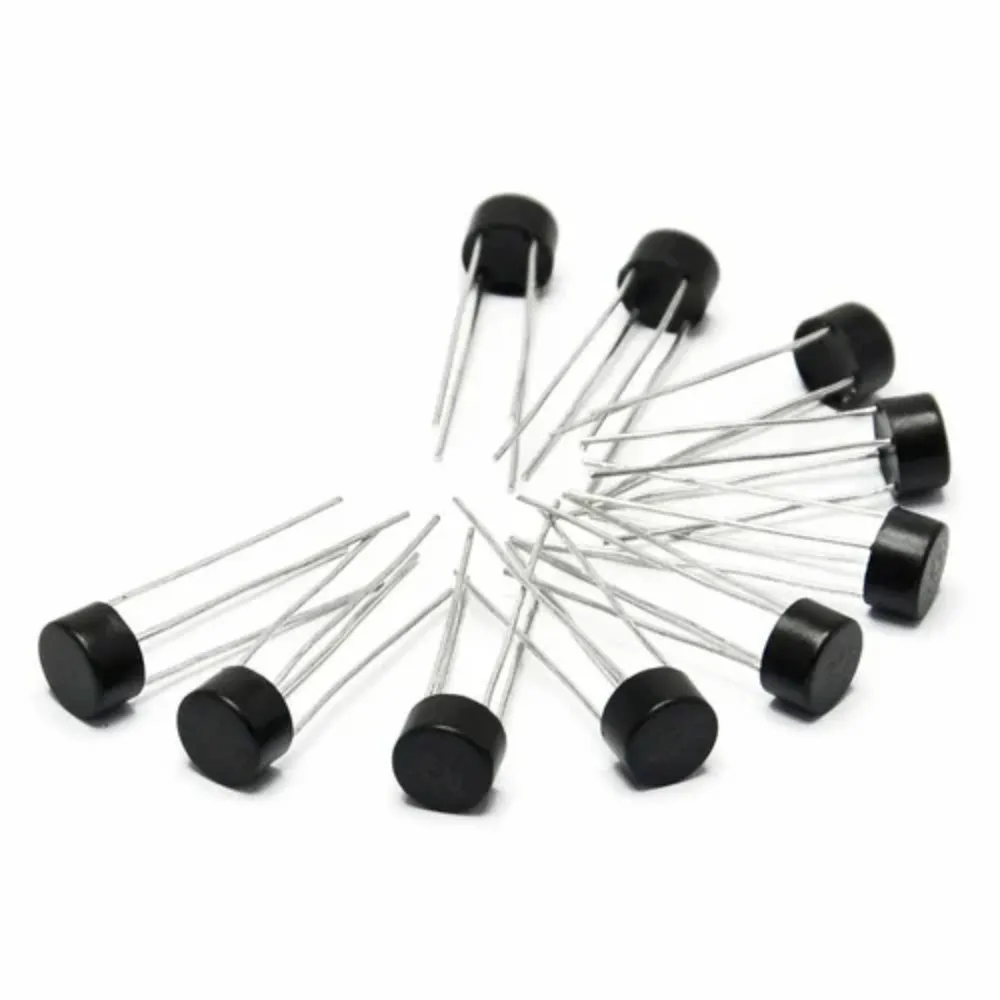

Quantity: Includes 10 pieces of the W08 Bridge Rectifier IC.
Standard Component:
Industry Standard: Complies with industry standards for bridge rectifiers.
Technical Details
- Maximum recurrent peak reverse voltage: 400V
- Maximum RMS voltage: 280V
- Maximum DC blocking voltage: 400V
- Maximum instantaneous forward voltage: 1V
- Maximum average rectified current: 1.5A
- Peak forward surge current: 40A
- Operating temperature range: -55℃ to 125℃
- Maximum DC reverse current : At 25℃: 10µA , At 125℃: 500A
Physical Attributes
- Case: molded plastic
- Lead: solder plated
- Weight: 1.07g
Additional Details
- Surge overload ratings to 40A peak
- Ideal for printed circuit boards
- Reliable low cost construction technique results in inexpensive product
Package Includes
- 1 x 10 Pcs W08 Bridge Rectifier IC 4 pin 1.5A
