Features:

• 200-MHz bandwidth
• Rated to measure differential voltage up to ±100 VDC peak AC with high CMRR of >70 dB at 1 MHz
• Zero offset adjustable
• Long cable length (5m)

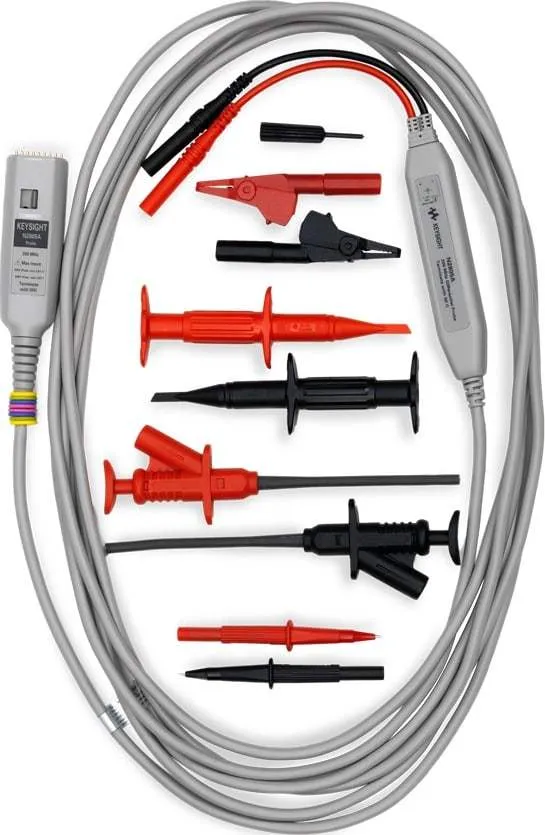

Included accessories

• Two alligator clips
• Two hook clips
• Two pincer clips
• Two browser tips

The N2805A is a 200-MHz differential probe designed to provide superior differential signal measurements with long cable length (5 m), making it ideal in an environment where extended cable length is required. The probe offers 50:1 attenuation ratio, allowing it to be used adequately for up to ±100V DC peakAC of high voltage differential measurements with high CMRR. The differential probe has a differential input resistance of 4 MΩ and low input capacitance of 4 pF to minimize circuit loading. The probe is powered by Keysight’s oscilloscope AutoProbe interface.
