| Product Attribute | Attribute Value |
|---|---|
| Approvals | IP66, UL508 Type 4X |
| Connection Type | Socket |
| Contact Form | 5 A at 250VAC/30 VDC |
| Depth | 0.079" (2mm) |
| Dimensions | 58H x 48W x 62.5D |
| Display Digit Height | 10, 12 mm |
| Display Type | Digital, LCD |
| Enclosure Rating | IP66 |
| Function | Timer |
| Input Type | NPN |
| IP Rating | IP66 |
| Measuring Range | 0.001 to 9.999, 0.01 to 99.99, 0.1 to 999.9, 1 m to 99 h 59 m, 1 s to 99 m 59 s, 1 to 9999 hrs., m, sec. |
| Mounting Type | Panel |
| Number of Digits | 4 Digits x 6 Rows |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Output Type | SPDT |
| Primary Type | Digital Timer |
| Series | |
| Special Features | EEPROM |
| Supply Voltage | 100 to 240 VAC VAC |
| Temperature Range | Maximum of 55 °C |
| Temperature, Opening, Maximum | 55 °C |
| Termination | Screw Terminal |
| Type | Electronic |
Overview

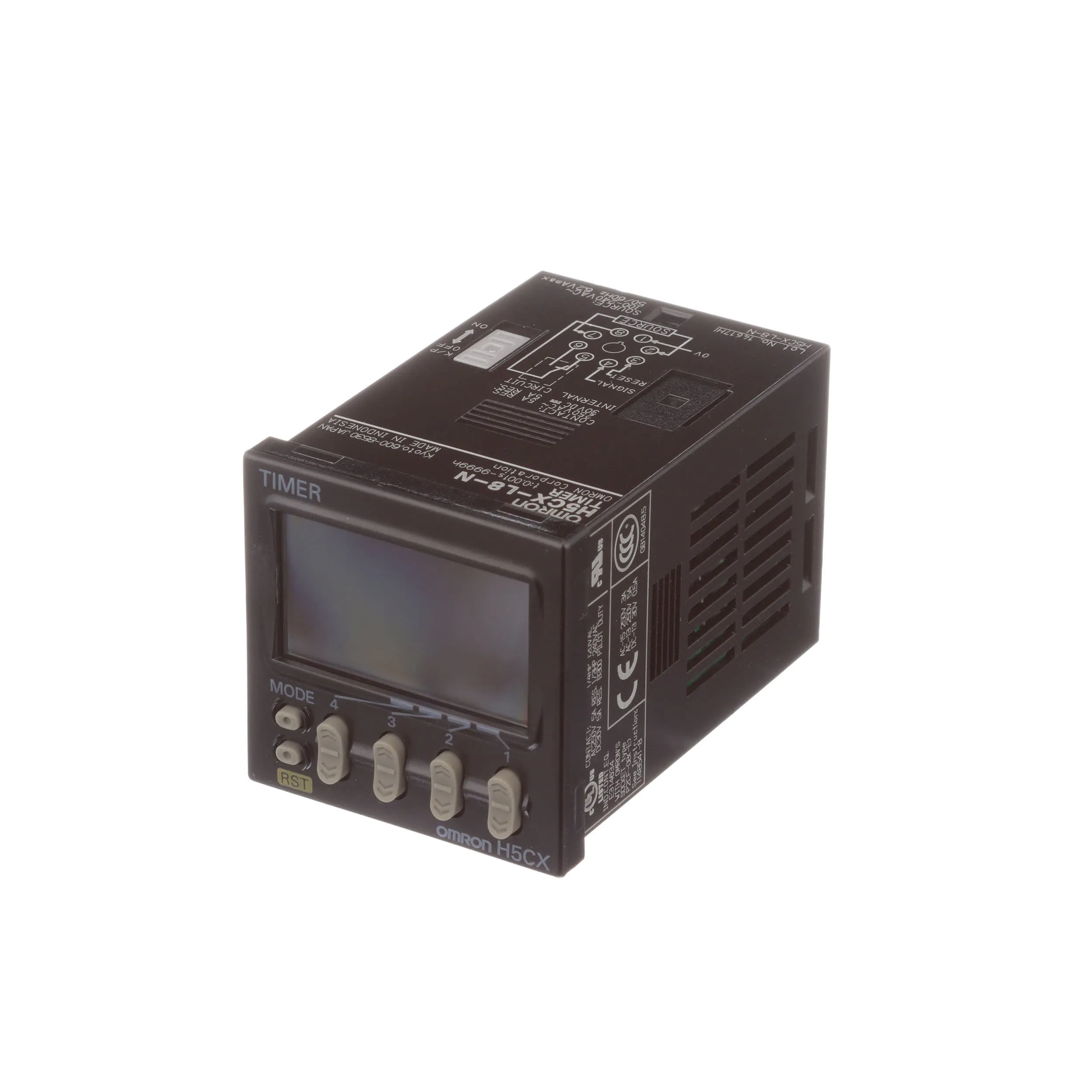

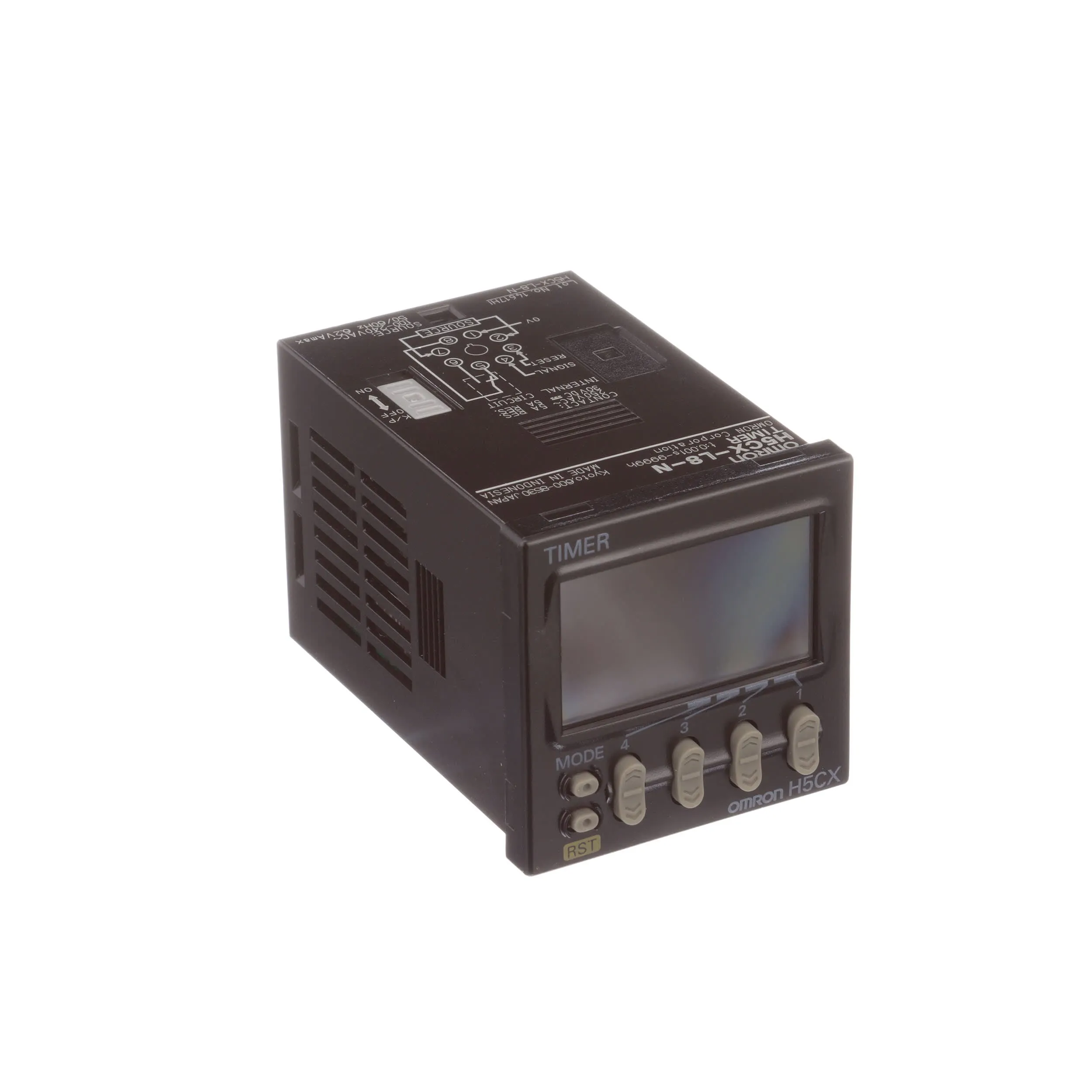

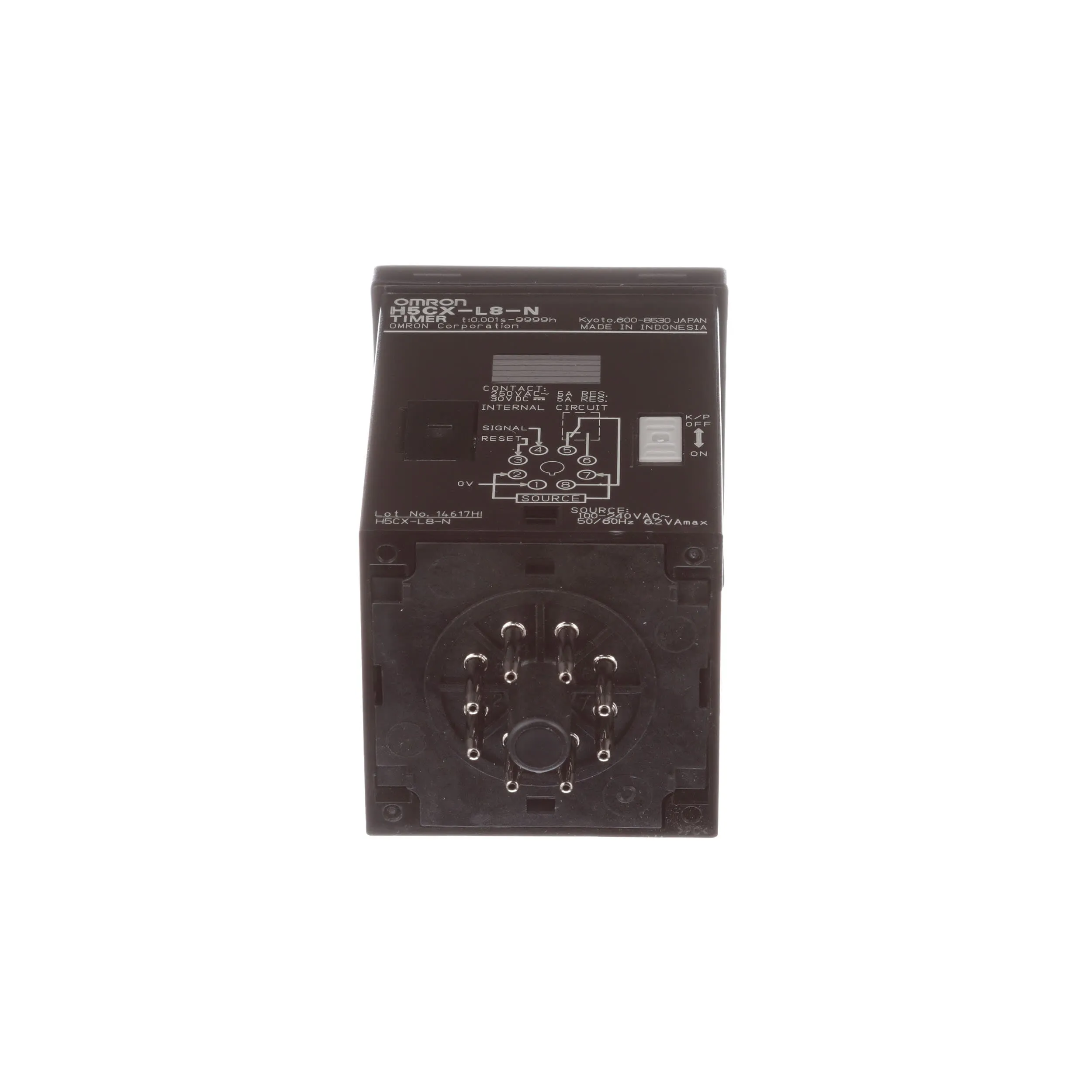

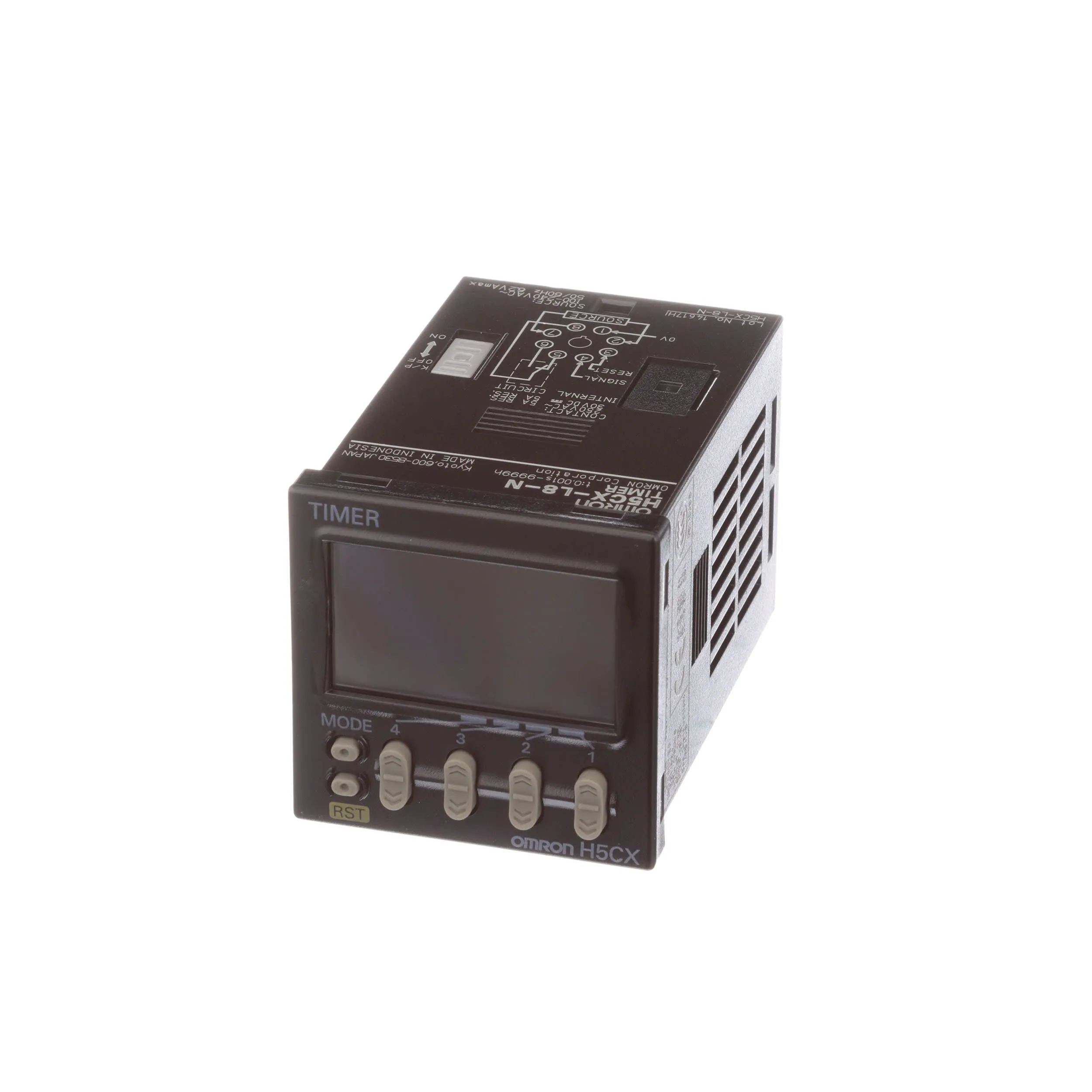

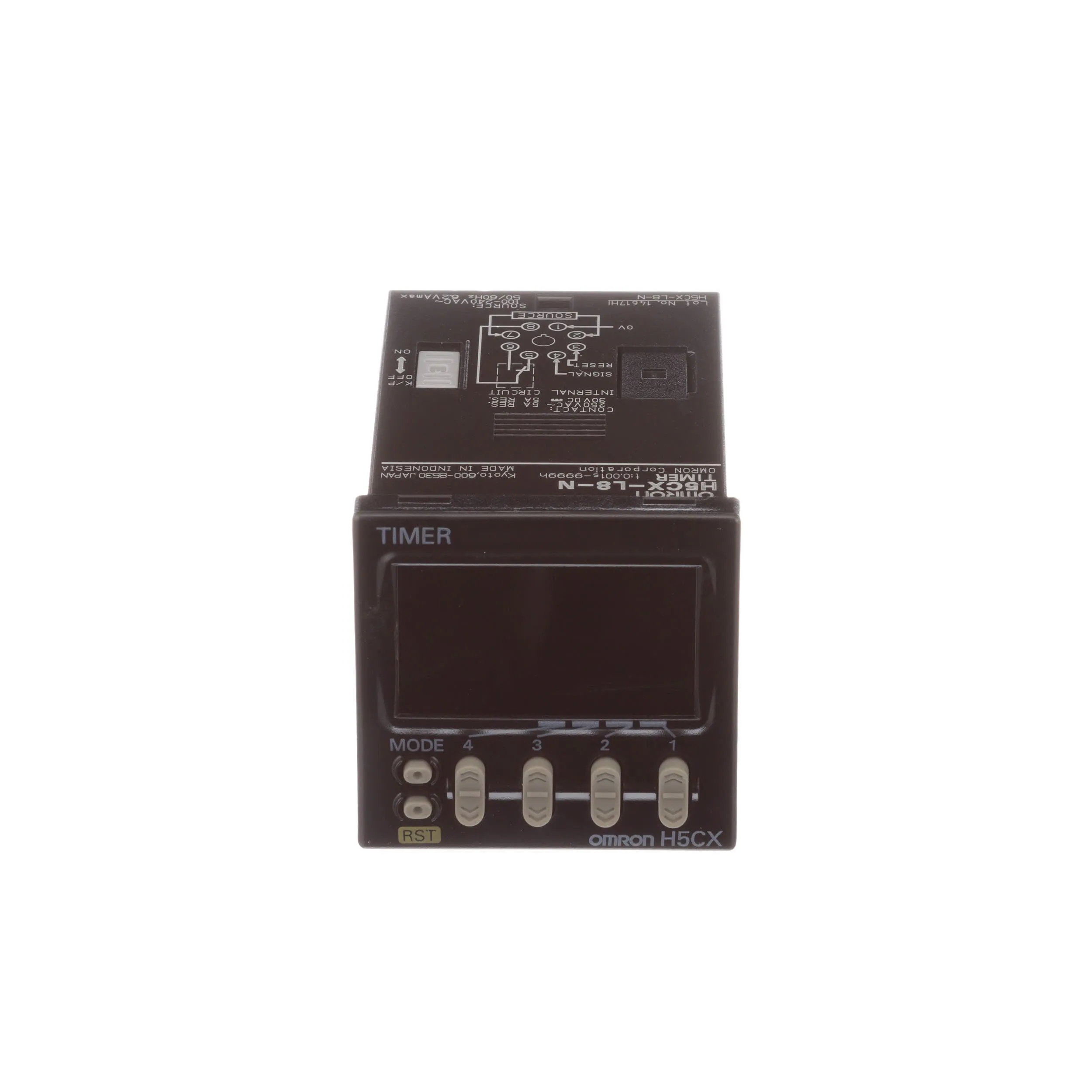

Ultra Compact Digital Timer - H5CX Series
Featured List:
