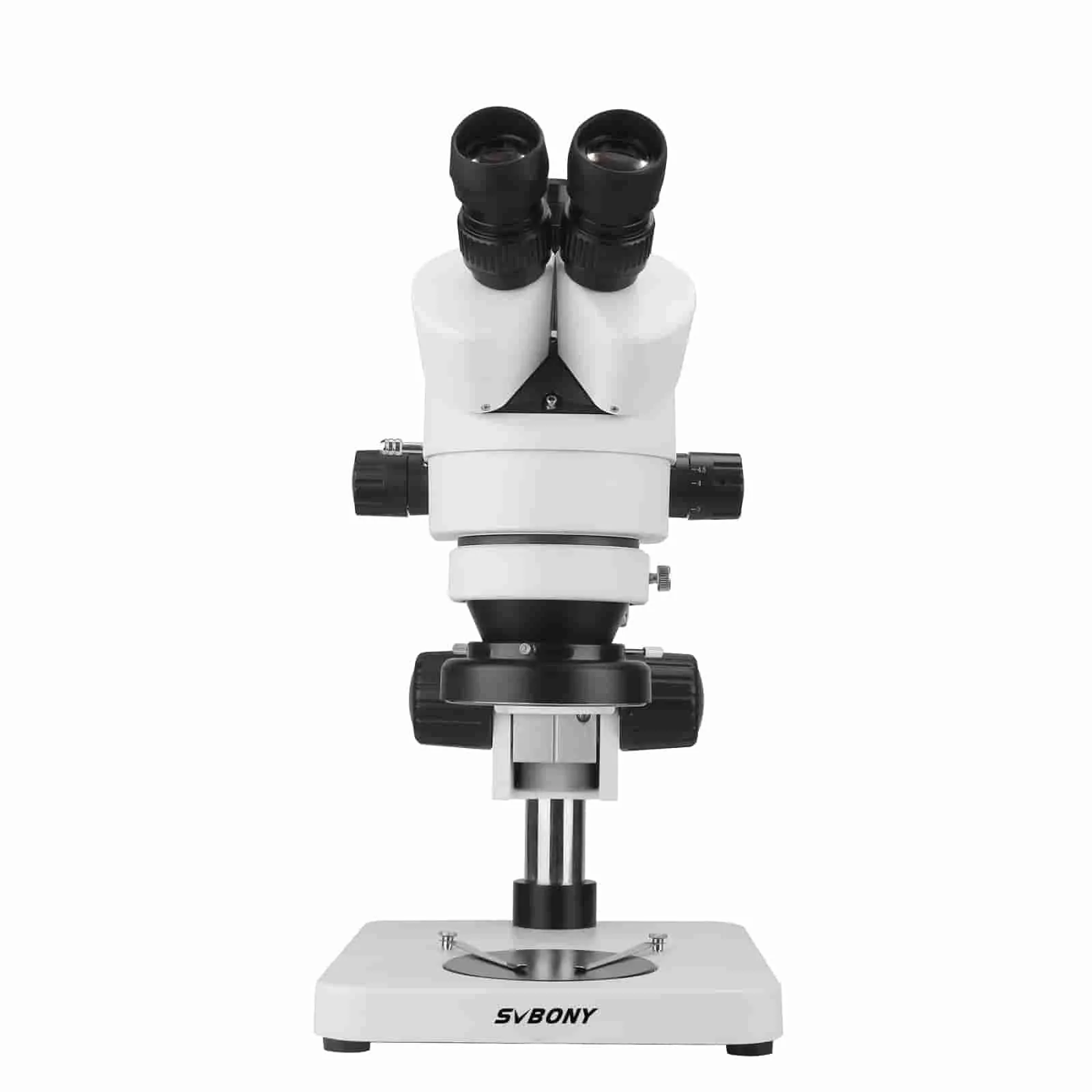

SVBONY Trinocular Zoom Microscope 7-45x

This SM402 professional stereo double-knob zoom microscope provides crystal sharp stereo images with a very wide field view, which is widely used in labs, schools as well as other different professional uses.

The microscope comes with an optional digital camera, which can operate while using the microscope.

Features

• SM402 features 7X-45X image magnification capability, including 0.7X-4.5X zoom objective and high eye-point WF10X eyepieces. Full optical glass lenses create sharp and clear stereo images with excellent contrast and vibrant colors.

• This stereo microscope kit has a 45-degree inclined and 360-degree swiveling head with adjustable interpupillary distance (54-76 mm) and diopter. The subtle and coarse focus adjusting knobs are adapted to suit different needs.

• The SM402 is equipped with a top expansion port designed to connect the camera or display. This trinocular port allows you to watch the specimen on the screen. The trinocular port is capable of adding a CCD camera or DSLR.

• The reversible black&white stage plate provides contrast with light- and dark-colored specimens, and large stage clips to secure the specimen during viewing.

• LED ring light equipped provides uniform cold light when used in dark places and ensures accurate alignment. The light brightness is step-less adjustable with a dimmer for watching different specimens.

• This SM402 stereo zoom microscope is widely used to observe plants, rocks, stamps, jewelry, soldered pieces, microelectronic components, etc. It is an ideal tool for watchmakers, jewelers, engravers, dies-makers, philatelists, and students.

Widely used in semiconductors, optical communications, display module, electronic industrial production line inspection, material analysis, jewelry evaluation, hardware  processing and maintenance of mobile phones/watches as well as in all areas where the surface of the sample is carefully observed, with measurement software for measurement different data.

3D Effect With The Naked Eye

It is suitable for chip observation, jewellery identification, PCB maintenance, electroplating, biological anatomy and other areas. You can see stereoscopic
3D imaging with clear imaging and strong stereoscopic effect.

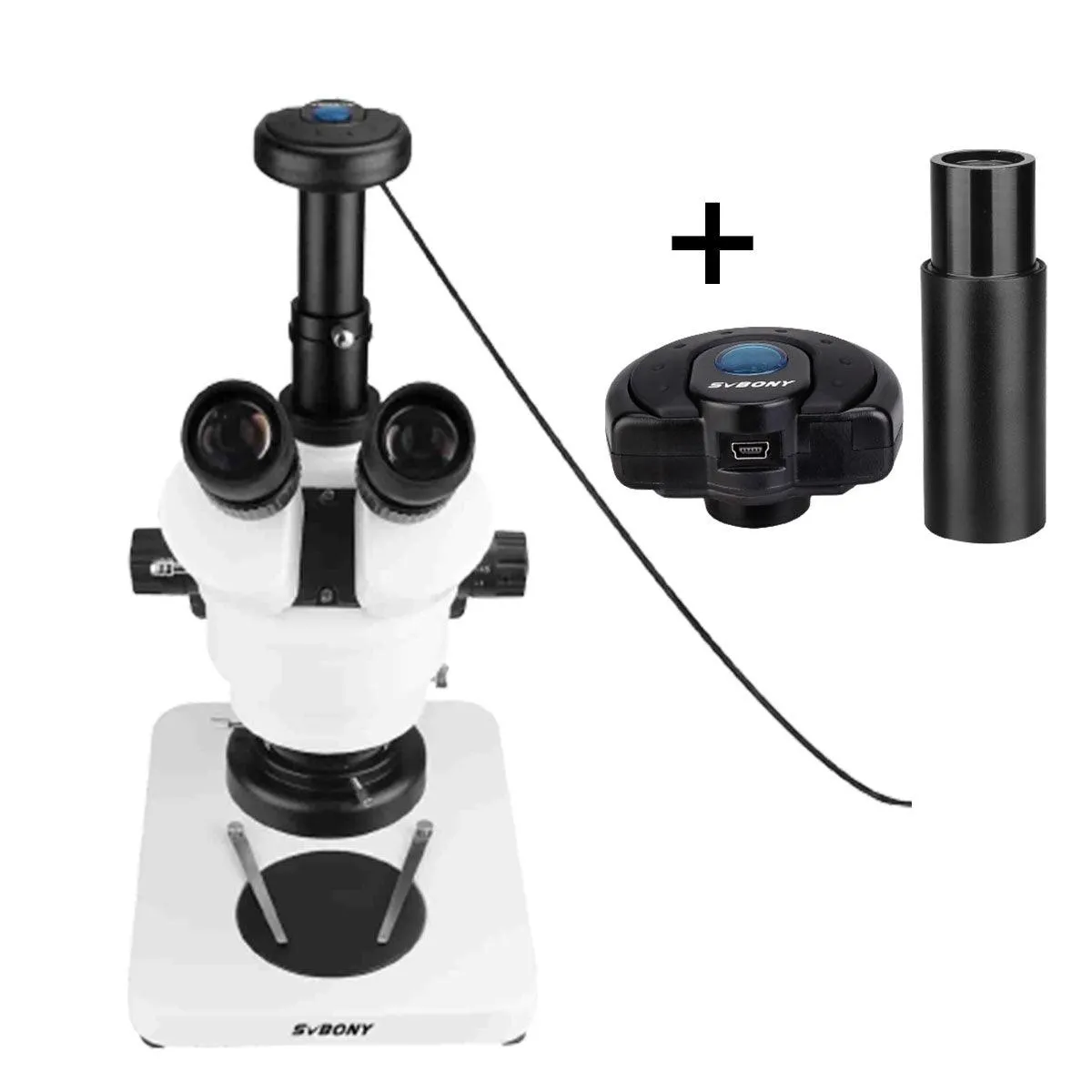

Compatible With CCD Camera or DSLR

You don't need to keep an eye on it all the time. By using SV189 Digital Microscope Camera, you can make your watching more easily and happily.

Technical Specifications

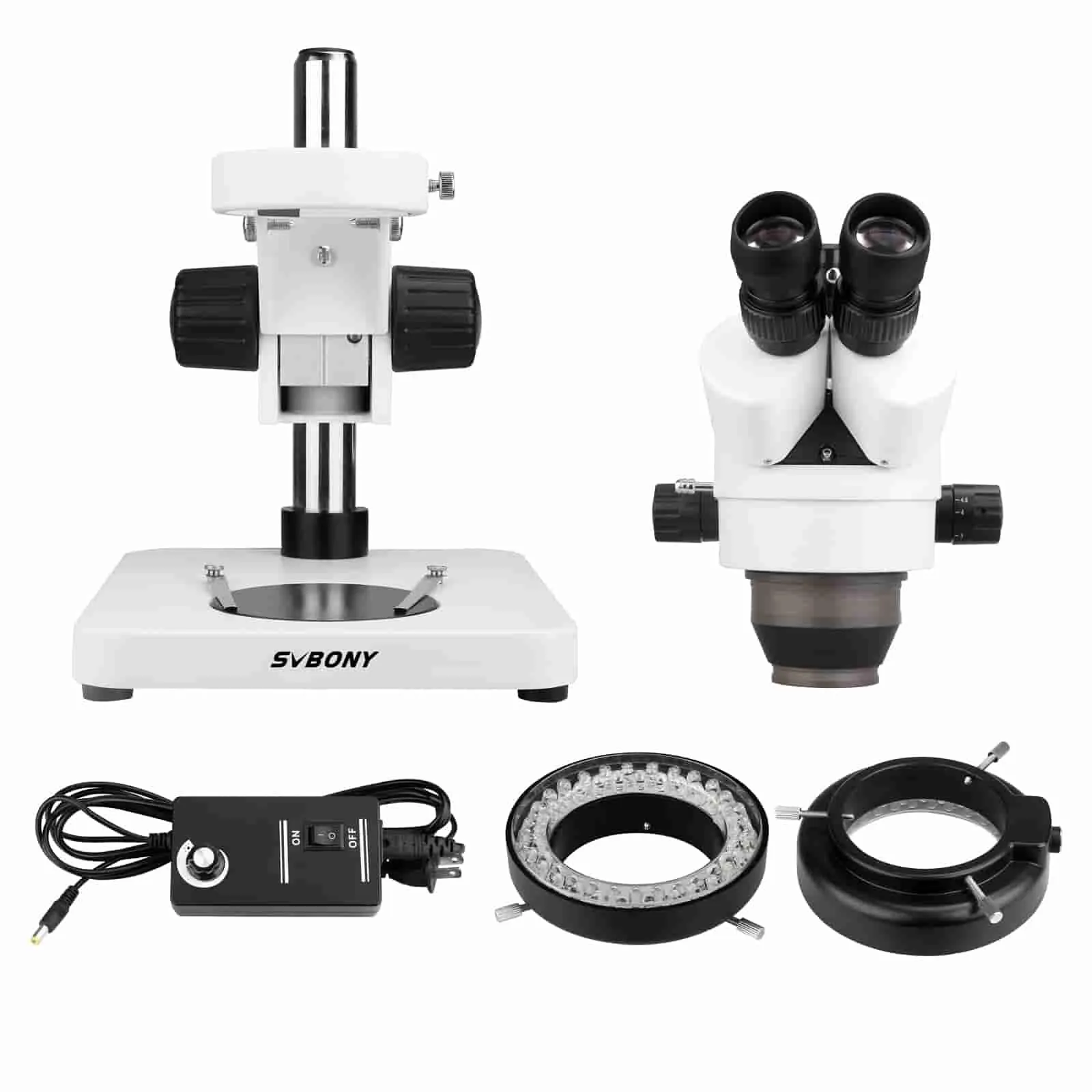

In the Box

• F9377B Trinocular Zoom Microscope
• Power Cable
• Led Ring light

Optional :

• W9148A Digital Camera

Manuals & Warranty
